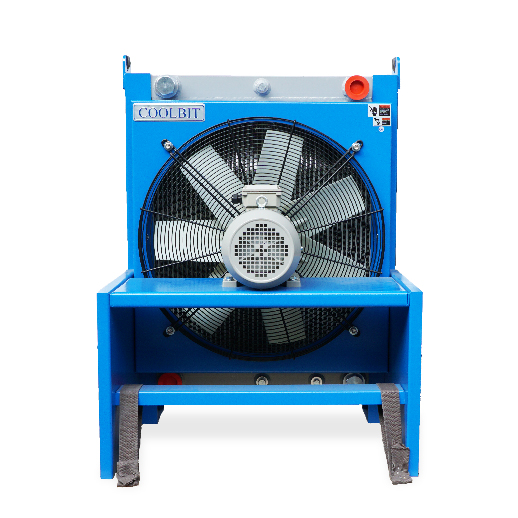

Hydraulic Oil Coolers/ Air-cooled Oil Cooler-AH2583-CA*
PLATE-FIN HEAT EXCHANGERS/COOLERS
Hydraulic oil coolers
Air-cooled way
Plate-Fin Oil-Air Heat Exchangers/air cooler manufacturer
AH-series are original cooler series of COOLBIT,
We had been insisted on the quality for 18 years
ECO Heat-Exchanger
Material : Aluminum Alloy
Thematerial and the grade are same as the European Brand
The fans and the motors of COOLBIT, are beyond the normal industrial standard,because the coolers would be working in high-temperature eviorment.
*Class H insulation consists of materials, Maximum hot spot temperature allowed, 180 °C
*Coil number of turns are 15% more than standard, could work on 50 Hz.
*Small size motors Equipped with power-off system, to prevent the fire from happening.
*DC motors, Ingress Protection Rating IP68, Life time 20,000 hours.(Optional)
PDF Download Hydraulic oil coolers
Air-cooled way
Plate-Fin Oil-Air Heat Exchangers/air cooler manufacturer
AH-series are original cooler series of COOLBIT,
We had been insisted on the quality for 18 years
ECO Heat-Exchanger
Material : Aluminum Alloy
Thematerial and the grade are same as the European Brand
The fans and the motors of COOLBIT, are beyond the normal industrial standard,because the coolers would be working in high-temperature eviorment.
*Class H insulation consists of materials, Maximum hot spot temperature allowed, 180 °C
*Coil number of turns are 15% more than standard, could work on 50 Hz.
*Small size motors Equipped with power-off system, to prevent the fire from happening.
*DC motors, Ingress Protection Rating IP68, Life time 20,000 hours.(Optional)
Specification
Specification / Model
AH-2583-CA* Cooler
Thread
1 1/2" Rc/PT"
Fan diameter
630 mm
Cooling capacity
50,000 Kcal/h
Motor
75~100 Hp
Size
645*950*630 mm
Weight
100 kg
Frequency / Voltage / Current
50Hz , 3Φ 220-240 V / 380-415 V , 7.17-7.63 A / 4-15-4.15 A
Frequency / Voltage / Current
60Hz , 3Φ 220-240 V / 380-440 V , 6.56-6.24 A / 3.8-3.34 A
Approval
CE
Feature
- Best way to use :
- Hydraulic Presses Kidney Loop
- Off-line Recirculation cooling
